5200 lbs Tandem Trailer Axle Kit - 6 Lug Idler Axles & Suspension

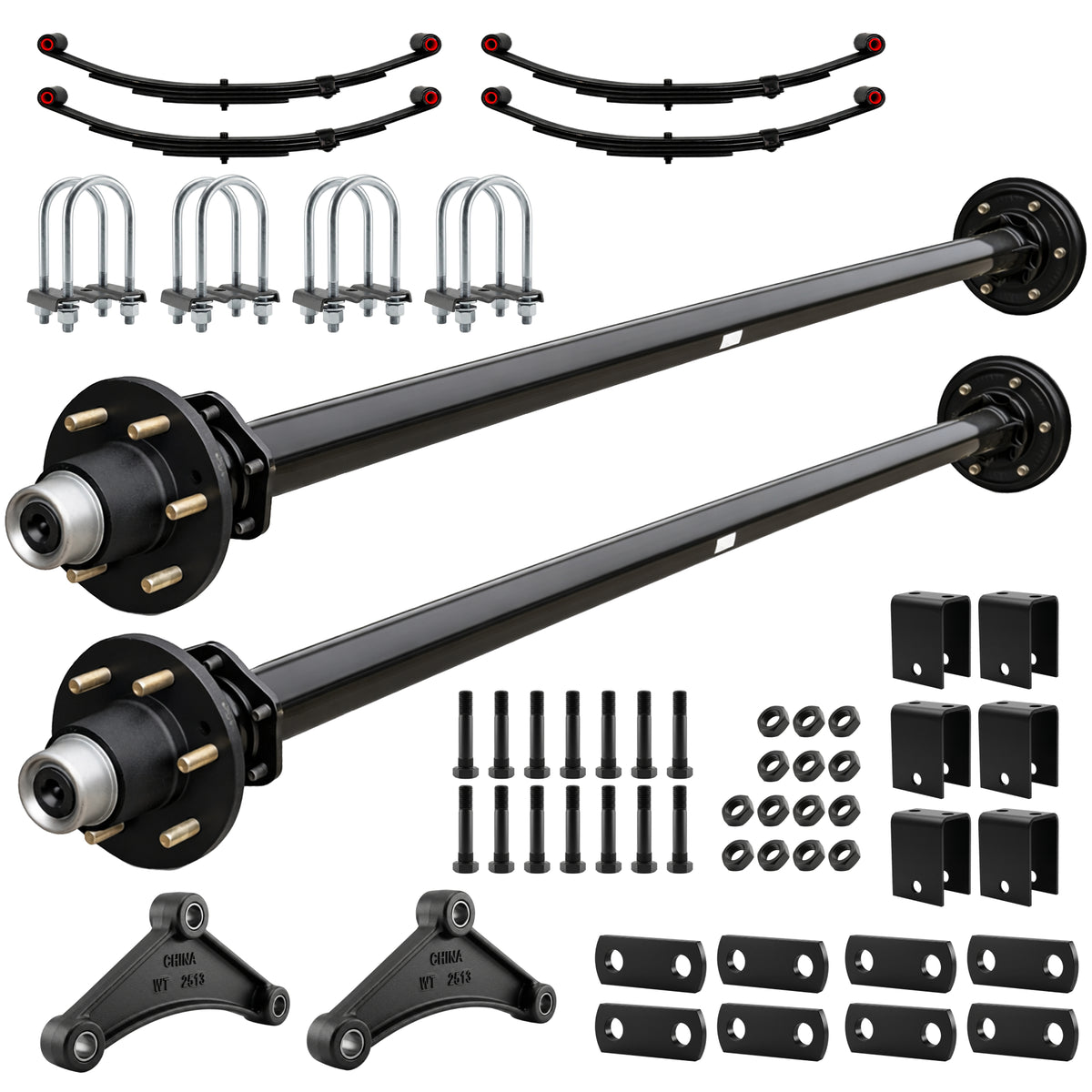

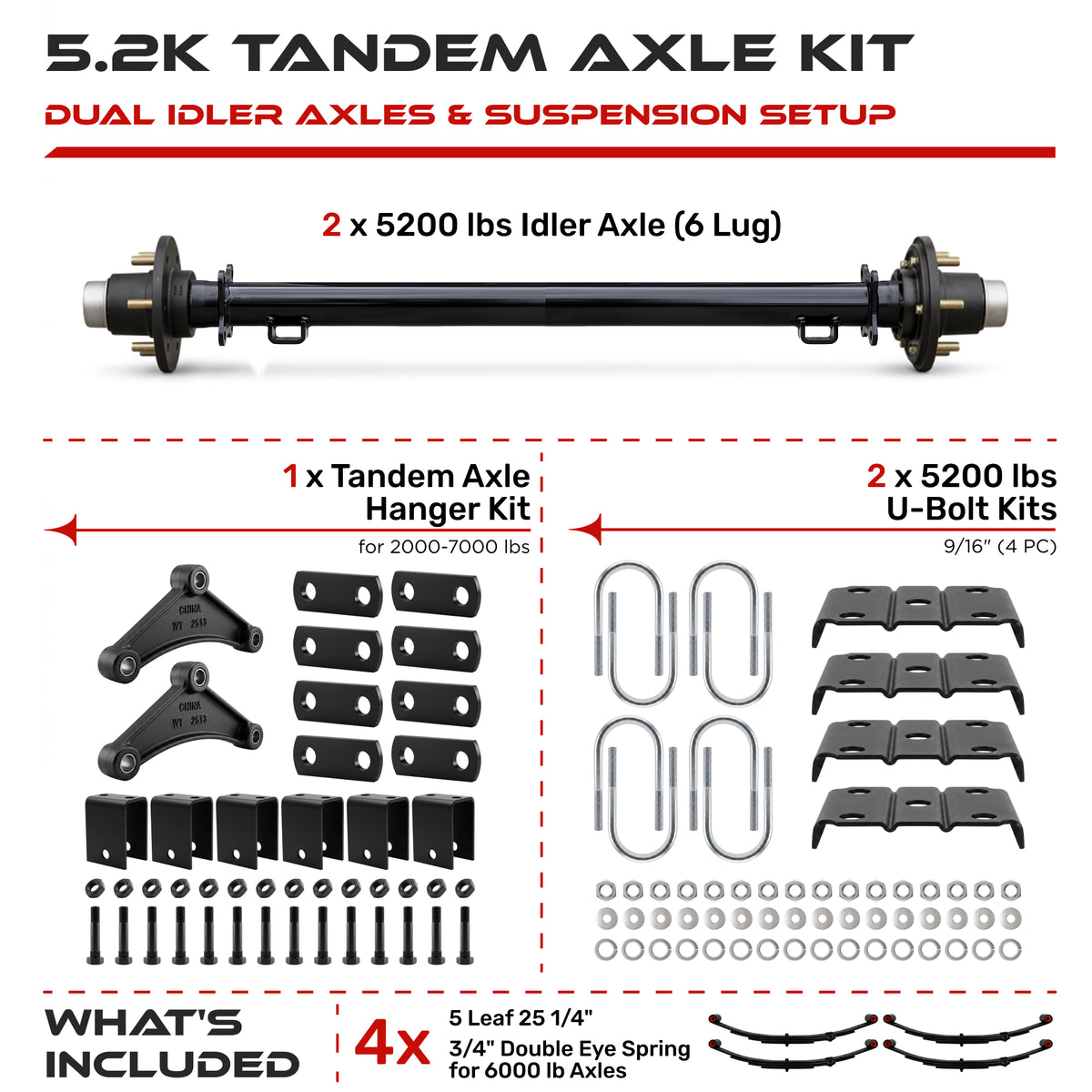

Kit Includes:

2 x 5200 lbs Idler Trailer Axles (6 Lug)
4 x 5-Leaf Double Eye Springs – 25-1/4" x 1-3/4"
2 x 5200 lbs U-Bolt Kits 9/16" (4 PC Total)
1 x Tandem Axle Hanger Kit

Specifications:

Axle Capacity: 5,200 lbs Each
Axle Configuration: Tandem
Bolt Pattern: 6 Lug
Hubface Options: 73", 75", 79", 82", 85", 89", 92", 93", 95", 96"
Hubface / Spring Center Options: 85"/70", 89"/74", 95"/80"

Description:

This 5200 lbs tandem axle kit combines two 6 lug idler trailer axles with the suspension and mounting components needed for a tandem axle trailer setup. The kit includes two 5,200 lbs idler axles, four double eye leaf springs, U-bolt mounting hardware, and a tandem axle hanger kit.

The 5200 lbs idler axles are available in a wide range of Hubface sizes from 73" to 96", providing multiple options for different trailer widths and configurations. Available Hubface / Spring Center combinations include 85"/70", 89"/74", and 95"/80".

The tandem suspension includes four 5-leaf double eye trailer springs measuring 25-1/4" x 1-3/4". Two 9/16" trailer U-bolt kits and a tandem axle hanger kit are also included to provide the mounting components required for both axles and the leaf spring suspension.

This setup is suitable for cargo trailers, utility trailers, equipment trailers, car haulers, landscape trailers, and other tandem axle applications requiring 5,200 lbs 6 lug idler axles.
