5200 lbs Trailer Axle Kit - 6 Lug Idler Axle, Double Eye Springs & Suspension

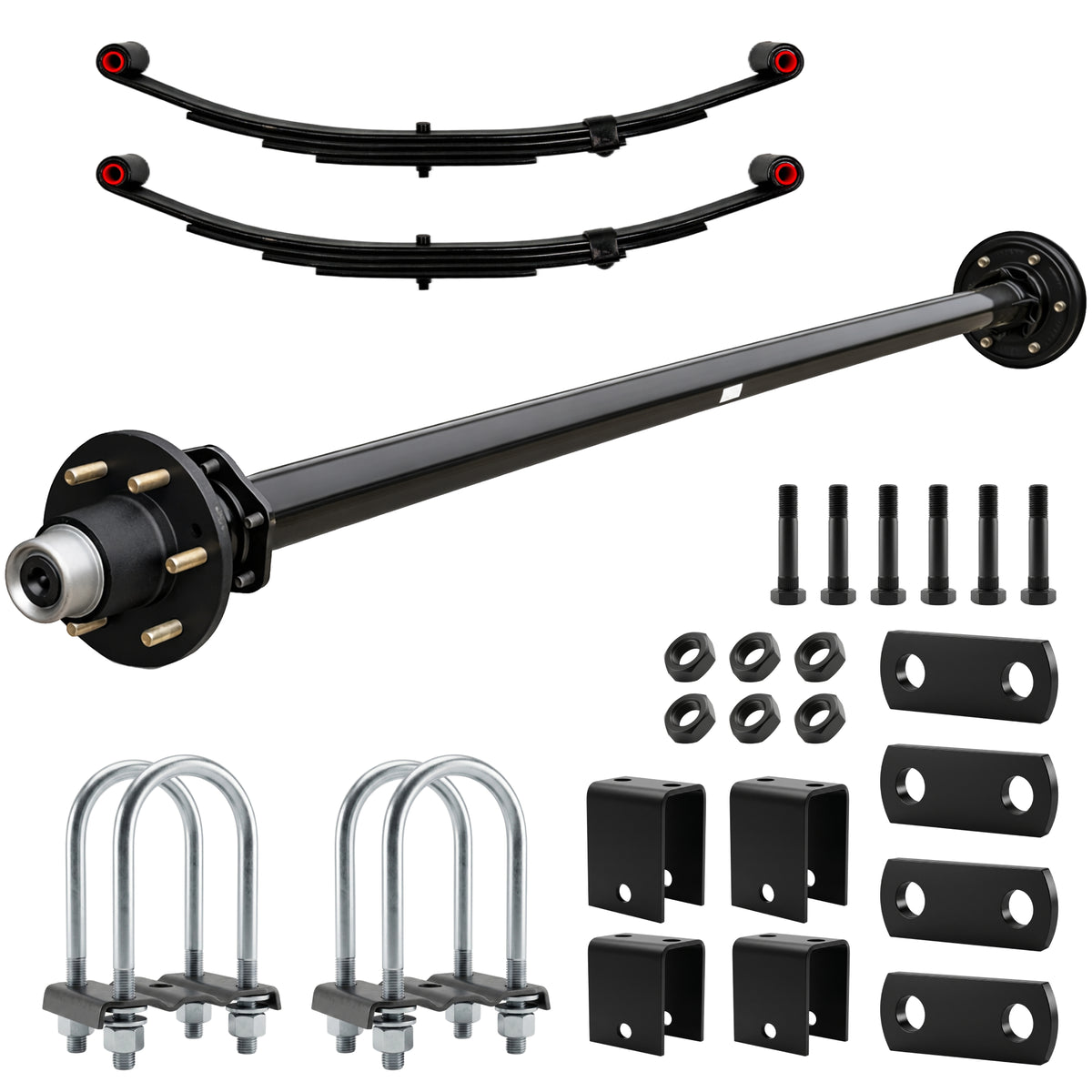

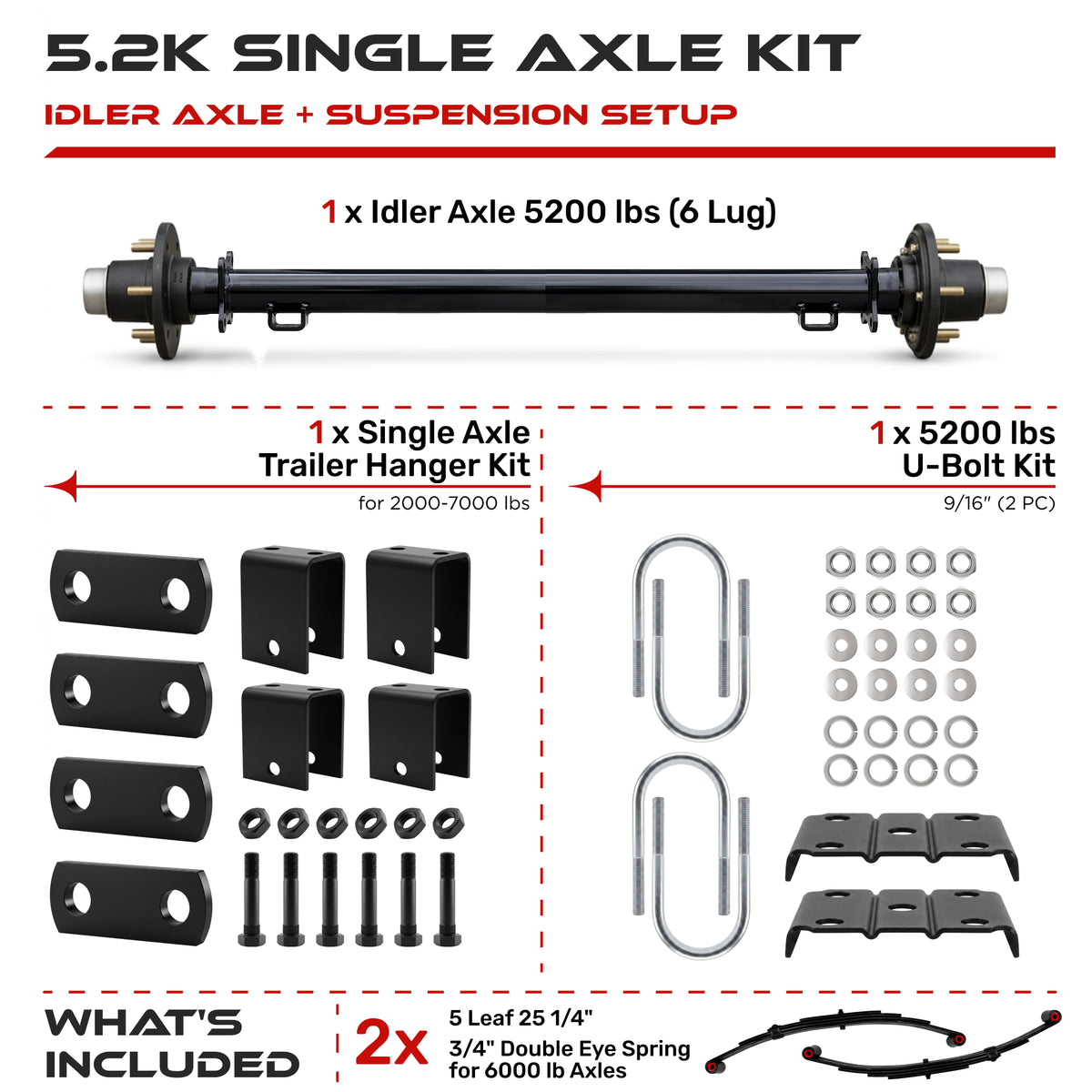

Kit Includes:

1 x 5200 lbs Idler Trailer Axle (6 Lug)
2 x 5-Leaf Double Eye Springs – 25-1/4" x 1-3/4"
1 x 5200 lbs U-Bolt Kit 9/16" (2 PC)
1 x Single Axle Trailer Hanger Kit for 2000–7000 lbs Axles

Specifications:

Axle Capacity: 5,200 lbs
Bolt Pattern: 6 Lug
Hubface Options: 73", 75", 79", 82", 85", 89", 92", 93", 95", 96"
Hubface / Spring Center Options: 85"/70", 89"/74", 95"/80"

Description:

This 5200 lbs single axle kit combines the essential components needed to build or replace a single axle trailer suspension setup. The kit includes a 5,200 lbs 6 lug idler trailer axle, two double eye leaf springs, U-bolt mounting hardware, and a single axle hanger kit.

The 5200 lbs idler axle is available in a wide range of Hubface sizes from 73" to 96", making it easier to select the correct axle width for different trailer configurations. Available Hubface / Spring Center combinations include 85"/70", 89"/74", and 95"/80".

The suspension setup includes two 5-leaf double eye trailer springs measuring 25-1/4" x 1-3/4", along with a 9/16" trailer U-bolt kit and single axle trailer hanger kit. Together, these components provide the axle mounting and suspension hardware needed for a single axle installation.

Suitable for utility trailers, cargo trailers, landscape trailers, equipment trailers, and other applications using a 5,200 lbs 6 lug trailer axle.
