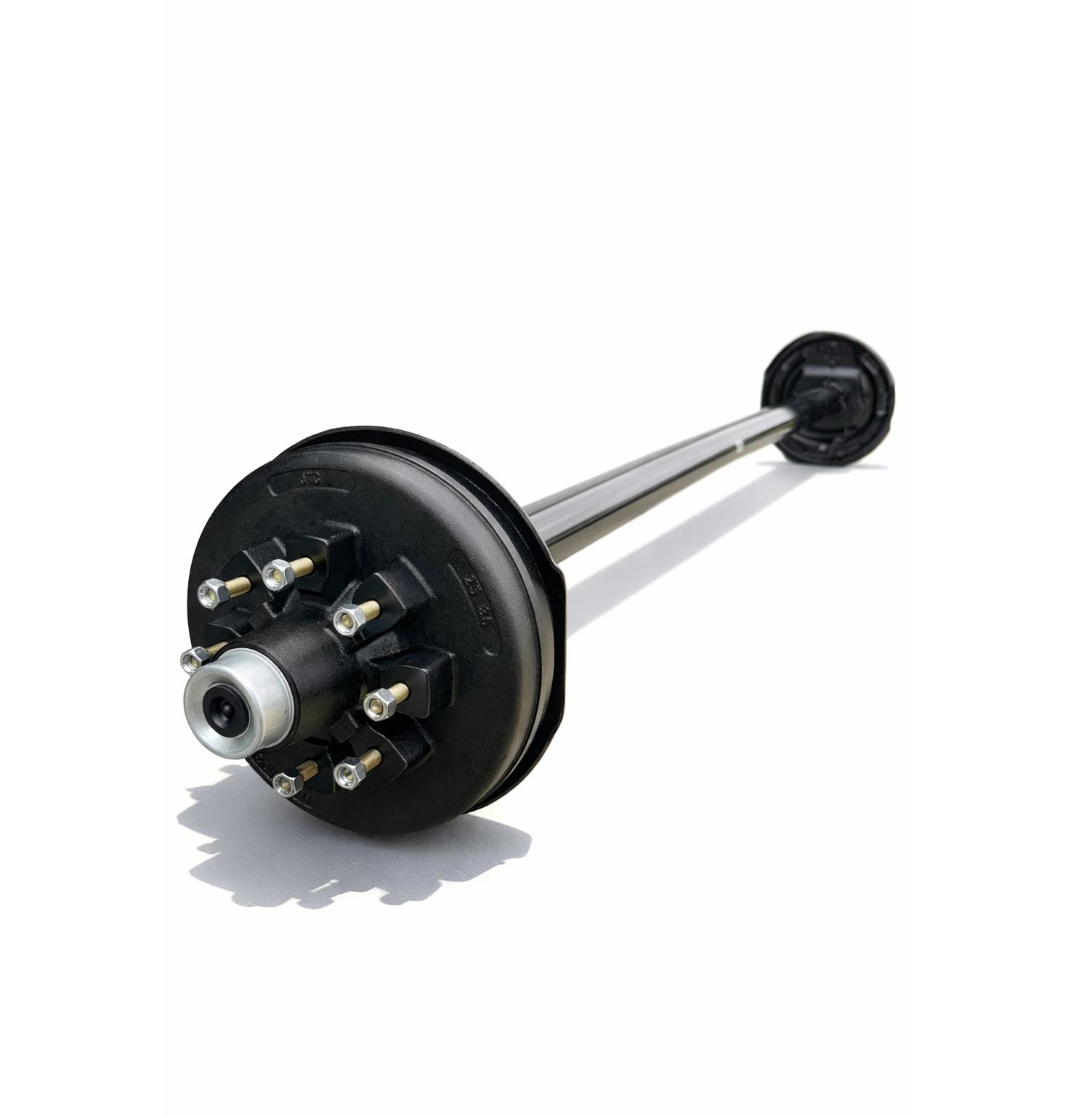

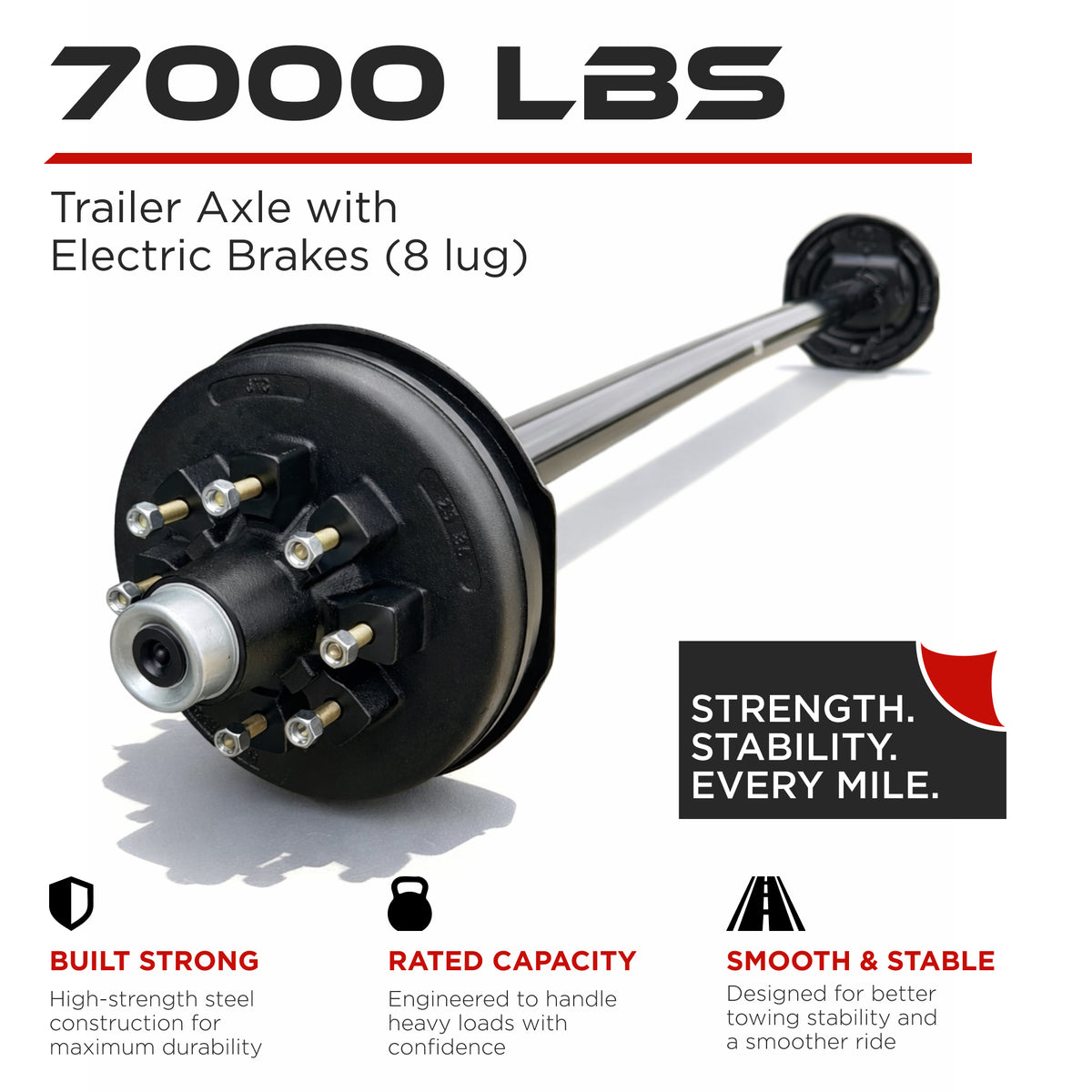

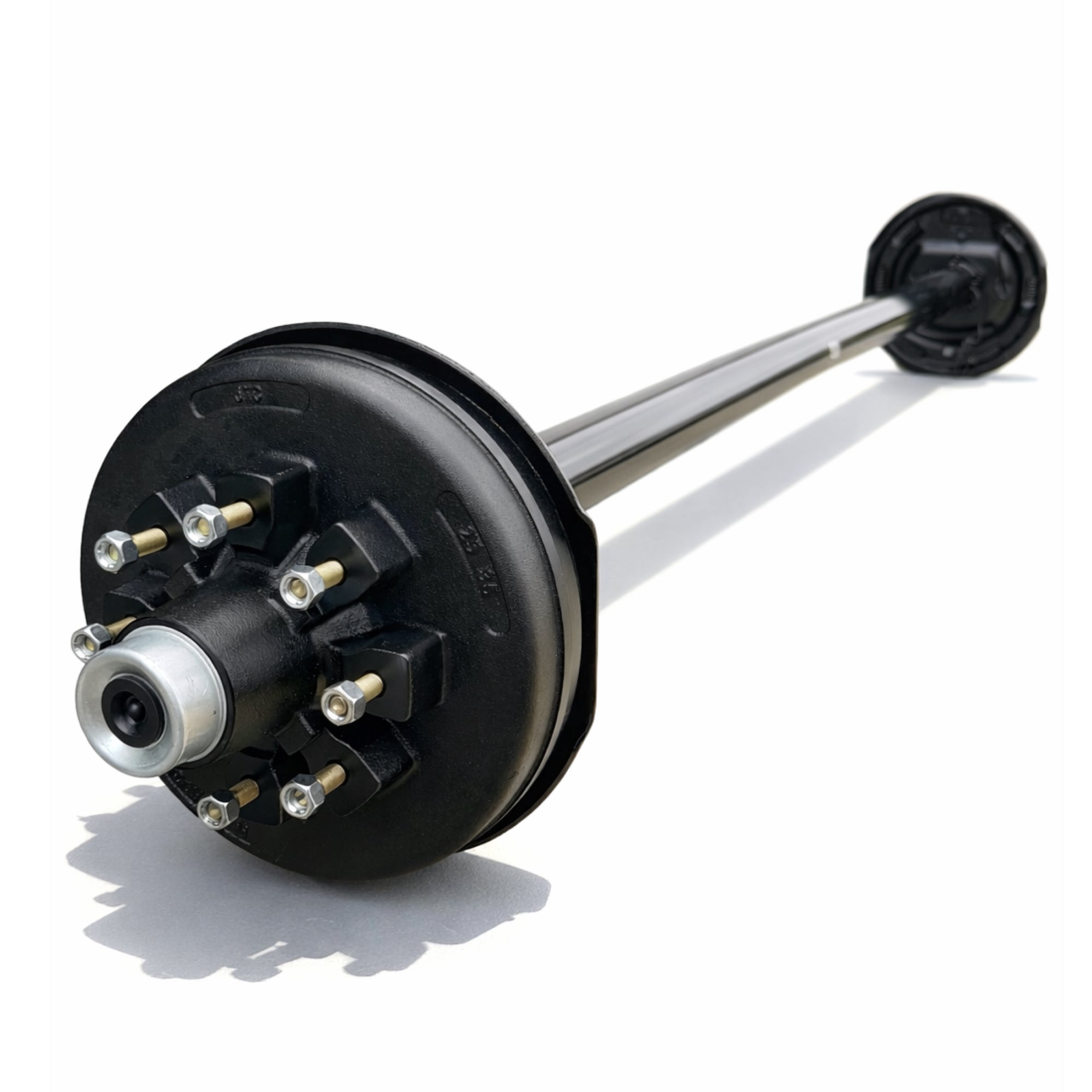

Trailer Axle - 7000 lbs with Electric Brakes (8 lug)

Specifications

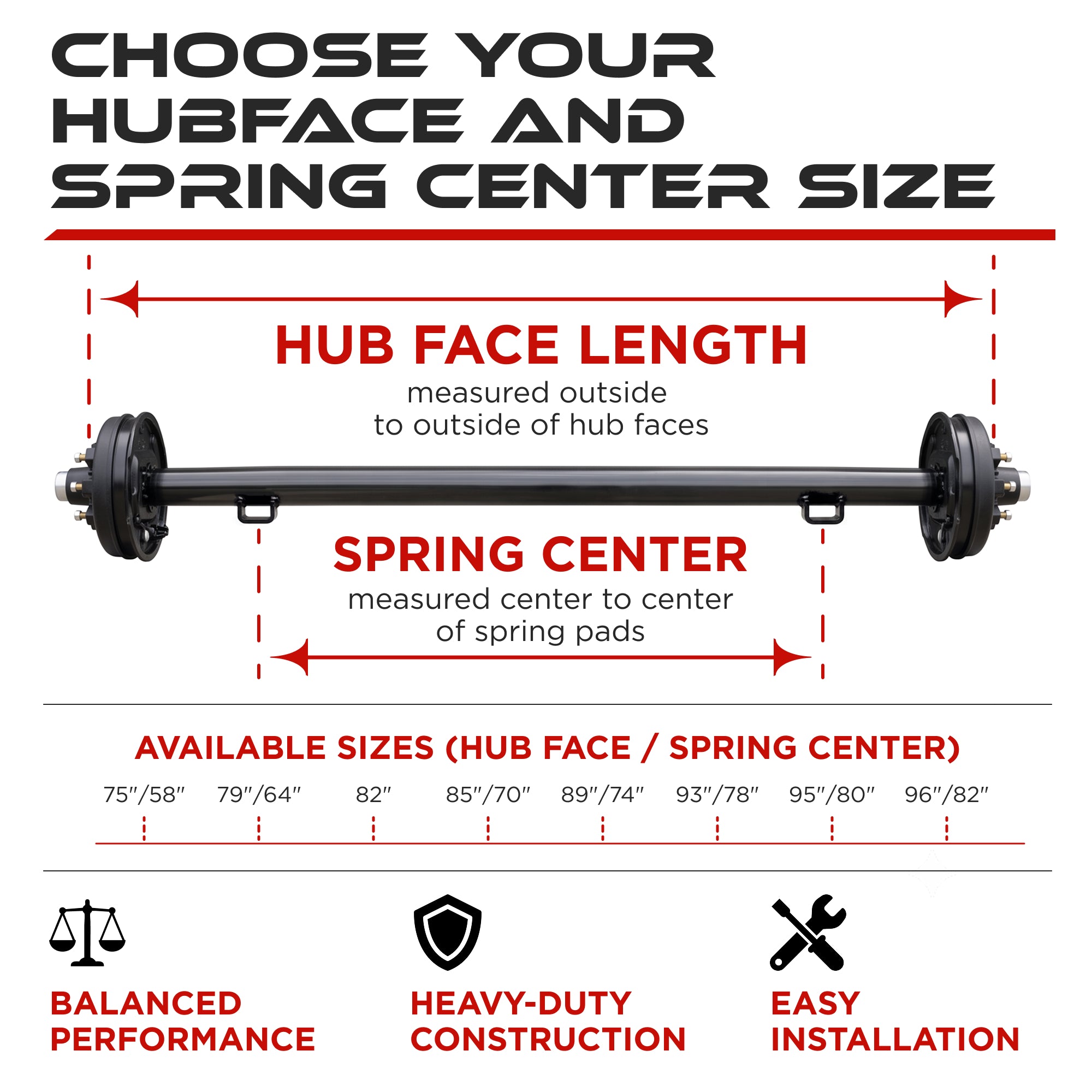

Hubface / Spring Center Options: 75"/58", 79"/64", 82", 85"/70", 89"/74", 93"/78", 95"/80", 96"/82"

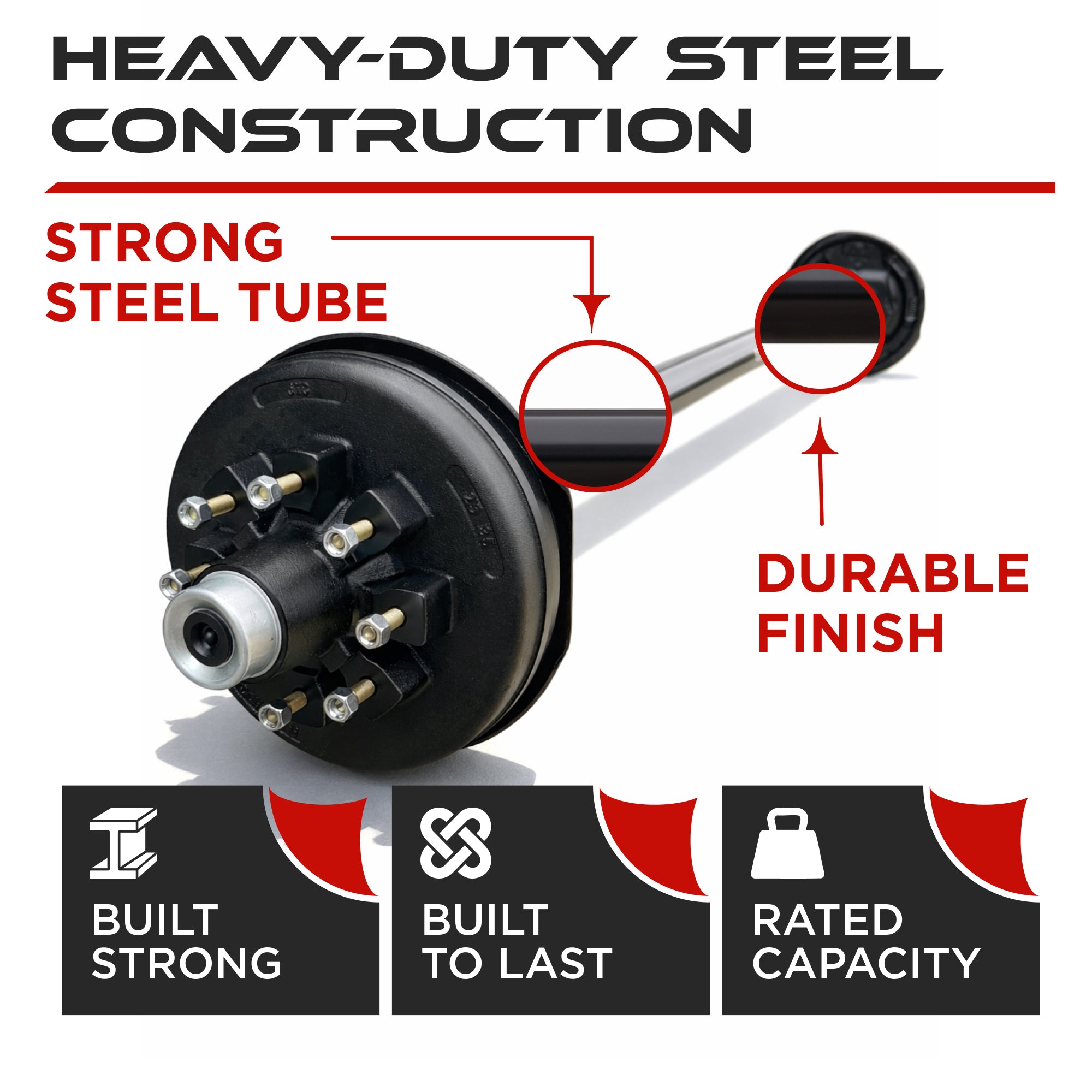

1 x Trailer Beam Axle – 7,000 lbs
2 x Hub & Drum – 8x6.5 Bolt Pattern
2 x 12" x 2" Electric Brake Assemblies
2 x 25580 Inner Bearings
2 x 14125A Outer Bearings
2 x Grease Seals 2.25" x 3.371"
2 x 7,000 lb Grease Caps with Plugs
2 x Cotter Pins
16 x Cone Wheel Nuts 1/2-20" Thread

Description

Built for trailer replacements, upgrades, and new trailer builds, the electric brake axle kit combines braking and wheel-end components into a complete package for 7,000 lb trailer applications.

The kit includes a heavy-duty trailer beam axle, hub and drum assemblies, 12" x 2" electric brake assemblies, bearings, grease seals, grease caps, cotter pins, and wheel nuts, providing the major components needed for a complete brake axle setup.

The 8 on 6.5 bolt pattern and 12" electric brake configuration are commonly used on equipment trailers, dump trailers, cargo trailers, gooseneck trailers, flatbed trailers, and car hauler trailers requiring dependable stopping power and stable towing performance.

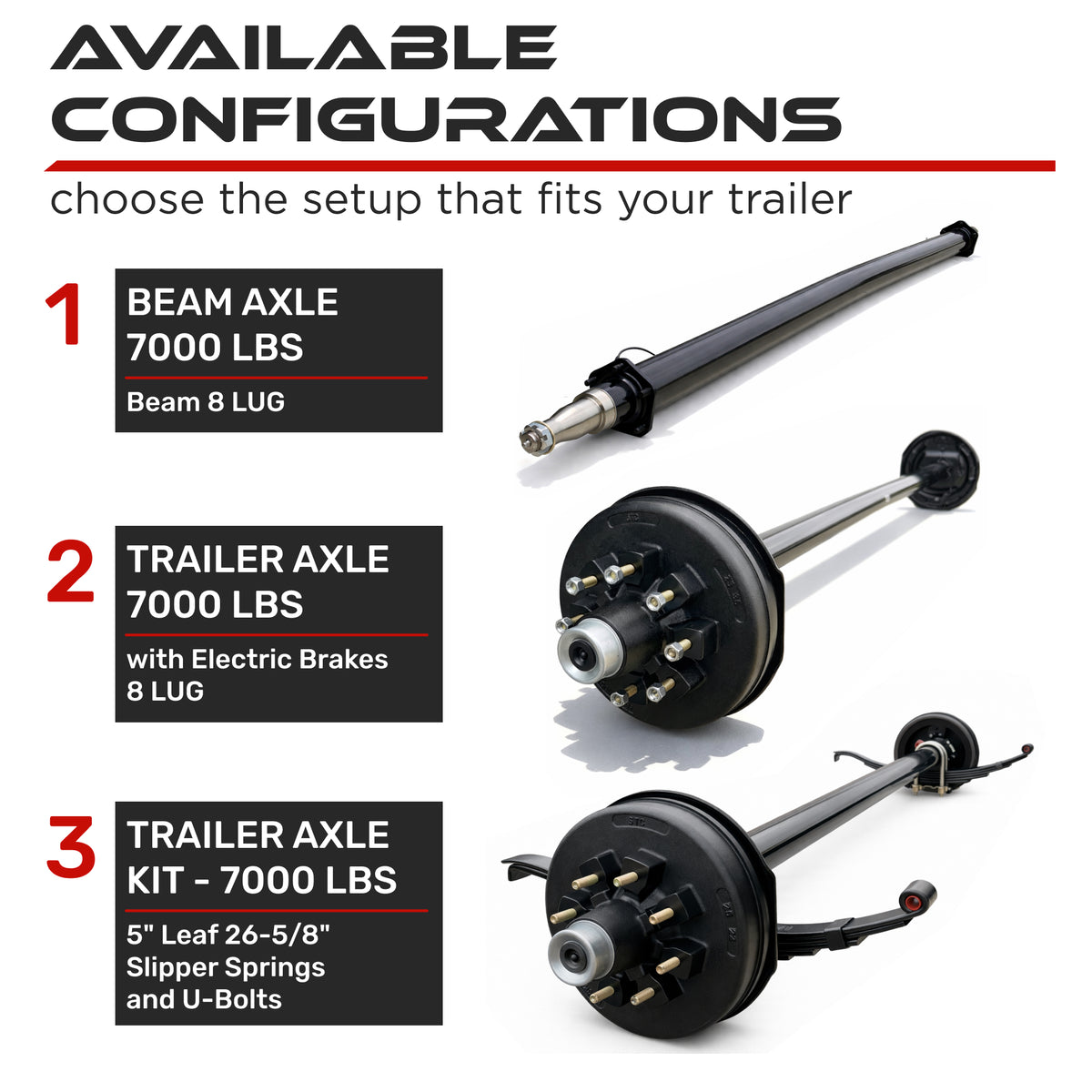

Available in multiple hub face and spring center configurations to accommodate a wide range of trailer dimensions and replacement needs. Multiple sizing options help simplify trailer axle replacement projects by making it easier to match existing trailer specifications without modifying the trailer frame or suspension system.

Commonly used as a replacement trailer brake axle for equipment trailers, dump trailers, cargo trailers, flatbed trailers, gooseneck trailers, car hauler trailers, and other heavy-duty towing applications.
